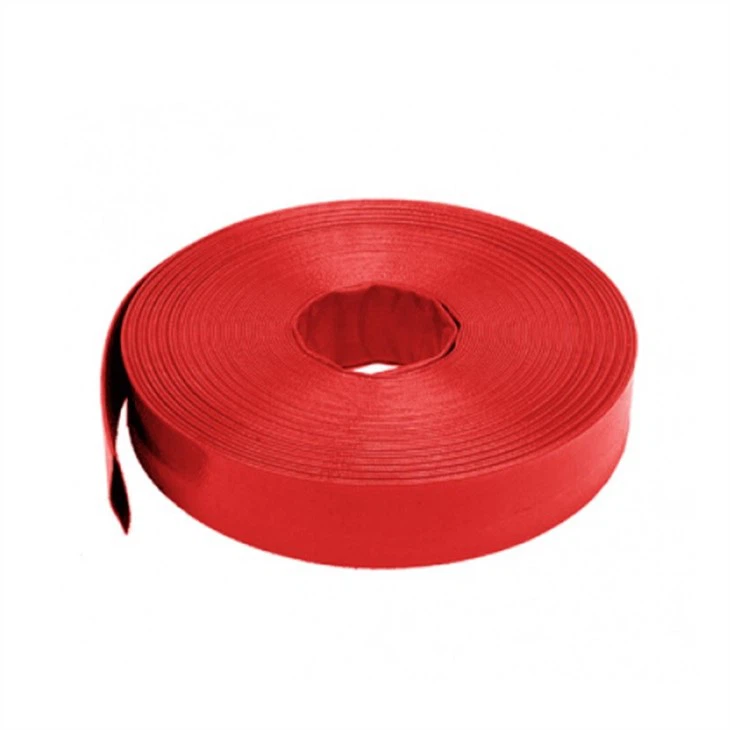

Pvc Woven-jacket Hose
Qauv nab npawb: PVC Lay Flat Hose
Khoom siv: PVC
Ntev: 50ft
Thickness: 1.2 hli
Kev Pabcuam: Moulding
Ua haujlwm siab: 6bar
Ua haujlwm kub: -5 degree rau ntxiv rau 65 degree
Nta: Durable, Lub teeb yuag nrog kev kub siab
Product Description:
Nta:
1. Kev tiv thaiv zoo rau dej hiav txwv, UV thiab ozone, nrog rau feem ntau cov khoom siv tshuaj thiab roj av.
2. Txias yooj ywm, haum rau cov dej kub.
3. Lub neej ntev, muaj nyob rau hauv defferent xim muaj
pvc woven-jacket hose
1) Cov kab hluav taws xob yog PVC, Roj Hmab lossis Luam Roj Hmab.
Thiab lub tsho ntawm hluav taws kub sib ntaus hose yog woven los ntawm siab siv ntawm polyester filament los yog polyester luv-fiber ( twill / tiaj ).
2) Muaj cov nplaum tshwj xeeb (khoom los yog kua) nruab nrab ntawm lub tsho thiab lub hose.
Lub canvas hose yog mos thiab polished heev, txo cov dej tsis kam
3) Qhov hluav taws kub hose yog nyias thiab softer, sib dua thiab yooj yim rau siv.
4) Qhov hluav taws kub hose yog kev kub siab ua haujlwm, kub tsis kam, tiv thaiv corrosion, kev laus ua haujlwm, hnav-tiv taus.
5) Peb muab cov xim sib txawv ntawm qhov hluav taws kub hose: xiav, dub, pob tshab, thiab lwm yam lossis raws li koj xav tau
6) Peb muab qhov sib txawv ntev ntawm qhov hluav taws kub: 10m - 30m lossis raws li koj xav tau
7) Lub qhov hluav taws kub hose yog ntim los ntawm poly hnab thiab thawv.
8) Cov hose siv hauv kev tua hluav taws lossis kev ua liaj ua teb
Khoom parameters
Tshooj No. | I.D. | W.P. | B.P. | Ntev | Qhov hnyav | Ntim | |||
nti | mm | psi | bar | psi | bar | m/roll | kg/m | m3 | |
HK{0}} | 3/4" | 20 | 58 | 4 | 218 | 15 | 100 | 0.14 | 0.014 |
HK{0}} | 1" | 25 | 58 | 4 | 218 | 15 | 100 | 0.15 | 0.019 |
HK{0}} | 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 | 0.17 | 0.023 |
HK{0}} | 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 | 0.21 | 0.026 |
HK{0}} | 2" | 51 | 58 | 4 | 174 | 12 | 100 | 0.23 | 0.039 |
HK{0}} | 2.5" | 64 | 58 | 4 | 174 | 12 | 100 | 0.32 | 0.047 |
HK{0}} | 3" | 76 | 58 | 4 | 174 | 12 | 100 | 0.36 | 0.06 |
HK{0}} | 4" | 102 | 58 | 4 | 174 | 12 | 100 | 0.55 | 0.083 |
HK{0}} | 5" | 127 | 58 | 4 | 174 | 12 | 100 | 0.75 | 0.109 |
HK{0}} | 6" | 153 | 58 | 4 | 174 | 12 | 100 | 0.9 | 0.141 |
HK{0}} | 8" | 203 | 58 | 4 | 174 | 12 | 100 | 1.8 | 0.193 |
HK{0}} | 10" | 254 | 58 | 4 | 174 | 12 | 50 | 2.6 | 0.178 |
HK{0}} | 12" | 305 | 58 | 4 | 174 | 12 | 50 | 3.1 | 0.245 |
Daim ntawv thov
Rau kev xa cov kua hauv kev ua liaj ua teb irrigation, mining, kev tsim kho dewatering thiab submersible pumping.PVC nrog qib siab zog polyester yarn reinforcement, hnav, aging resistant, abrasion resistant thiab compact rau kev lag luam cia.
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom nrog lub Hoobkas nyob hauv Weifang City, Shandong Province.
Q: Kuv tuaj yeem tau txais ib qho qauv los kuaj xyuas koj qhov zoo?
A: Tom qab tus nqi lees paub, koj tuaj yeem xav tau cov qauv los kuaj xyuas peb qhov zoo.
Q: Koj puas tuaj yeem ua tus tsim rau peb?
A: Yog, tsuas yog qhia peb koj lub tswv yim thiab peb yuav pab ua kom tiav koj cov tswv yim rau hauv cov khoom zoo meej.
Q: Koj puas tuaj yeem ua tus tsim rau peb?
A: Yog, Peb muab tag nrho OEM thiab ODM kev pabcuam rau peb cov neeg siv khoom.
Q: Thaum twg kuv tuaj yeem tau txais cov lus hais?
A: Tsis pub dhau 24 teev tom qab peb tau txais koj qhov kev nug, koj tuaj yeem hu rau peb lossis email rau peb.Yog li peb yuav xav txog koj qhov kev nug tseem ceeb.
Cim npe nrov: pvc woven-jacket hose, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, qis nqi
