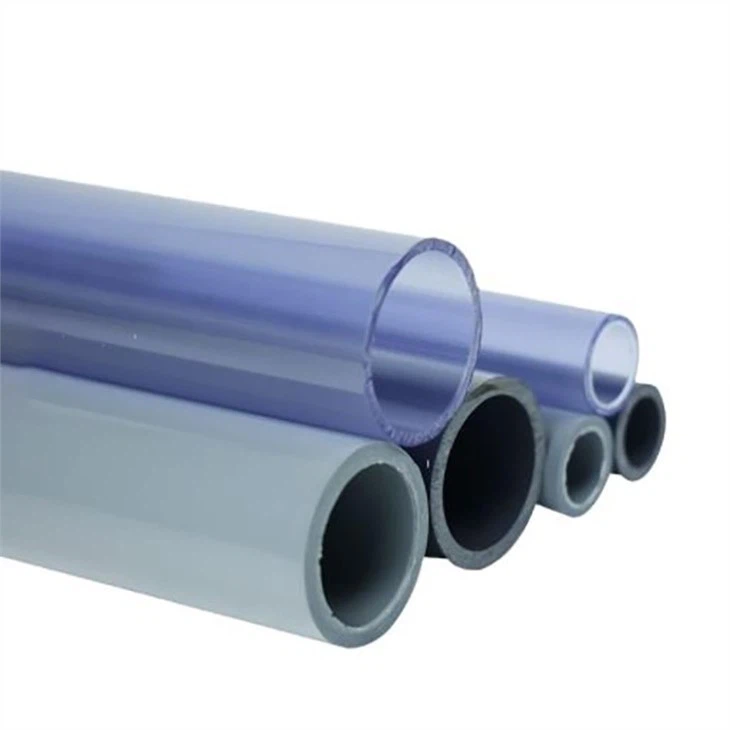

Hard 18 Nti Pvc Yeeb Nkab
Khoom siv: Polyvinyl chloride
Xim: Dawb Grey lossis customizedvLength: 4m 6m lossis raws li xav tau
Feature: corrosion kuj thiab siab tsis kam
Daim ntawv thov: dej muab, irrigation thiab ntws
Product Description:
PVC yeeb nkab Advantage:
1.Raw khoom nrog uv kuj tus neeg sawv cev
2.centralized khoom muab system
3.Ntshuam Advanced equipments.
4.one ntau lawm kab nrog ob npaug molding xovxwm, peb cov khoom tsim tau yog peb zaug ntawm lwm yam khoom siv.
5.ib lub sij hawm molding thiab socket-ua nyob rau hauv tib cov kab ntau lawm, assures cov kav dej zoo.
6.eco-phooj ywg raw khoom ua kom muaj kev nyab xeeb ntawm cov kav dej.
7.wide ntau yam xaiv los ntawm 16mm---800mm.
Khoom parameters
| OD DN | 0.6MPa | 0.8MPa | 1. 0MPa | 1.25MPa | 1.6MPa | 2. 0MPa | 2.5MPa |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
20 | 2 | 2.3 | |||||
25 | 2 | 2.3 | 2.8 | ||||
32 | 2 | 2.4 | 2.9 | 3.6 | |||
40 | 2 | 2.4 | 3 | 3.7 | 4.5 | ||
50 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
450 | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |
560 | 13.7 | 17.2 | 21.4 | 26.7 | |||
630 | 15.4 | 19.3 | 24.1 | 30 | |||
710 | 17.4 | 21.8 | 27.2 | ||||
800 | 19.6 | 24.5 | 30.6 | ||||
900 | 22 | 27.6 | |||||
1000 | 24.5 | 30.6 |
Daim ntawv thov
Dej engineering, hluav taws xob engineering, kev tsim kho, dej phwj tuaj, kev sib txuas lus engineering, drilling engineering, dej ntsev, Natural Gas engineering, chemical plant, paper mill, brewing fermentation plant, electroplate plant, Agriculture garden, oil field, tsiaj txhu, freeway engineering, golf chav kawm engineering thiab yas ntawv rau nuv ntses.
FAQ
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua qauv ua ntej ua ntej ua ntej ntau lawm; Kev soj ntsuam zaum kawg ua ntej xa khoom.
Q: Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim peb cov khoom hauv nruab nrab lub thawv dawb thiab cov thawv xim av. Yog tias koj tau sau npe patent raws cai, peb tuaj yeem ntim cov khoom hauv koj lub thawv muaj npe tom qab tau txais koj cov ntawv tso cai.
Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100 feem pua kev xeem ua ntej xa khoom
Q: Koj puas tuaj yeem suav tus nqi thauj khoom rau kuv?
A: Tau kawg, peb txaus siab ua qhov ntawd! Ua ntej freight, thov qhia rau peb paub seb qhov chaw nres nkoj twg lossis lub tshav dav hlau nyob ze koj qhov chaw.
Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q: Kuv puas tuaj yeem tso cov qauv txiav txim ua ntej?
A: Yog, peb yuav hais koj cov nqi sib txawv rau me me, nruab nrab thiab loj qty. Koj tuaj yeem xaj nrog tus nqi sib txawv rau qty sib txawv.
Cim npe nrov: nyuaj 18 nti pvc yeeb nkab, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, luv nqi
