1- Pvc Spring Wire Hose Pipe 2- Pvc Hlau Hlau Hose

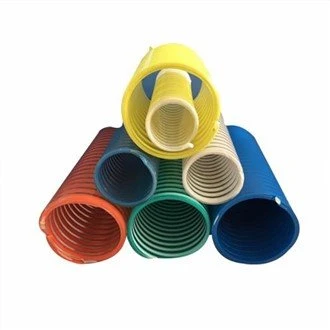

STEEL WIRE REINFORECED HOSE
Lub hose yog tsim los ntawm PVC raj thiab zinc-plated kauv hlau hlau. Lub raj yog siv lead ua ntshiab rau kev saib xyuas yooj yim, lub zog siab steel hlau ntxig rau phab ntsa ntawm lub raj kom tiv thaiv kinking lossis collapsing, du sab hauv kom tsis txhob muaj kev sib txhuam, tsis muaj tshuaj lom, tsis muaj silicone, lub teeb tshuaj tiv thaiv, UV thiab huab cua resistant, muaj ntau yam ntev. , kuj tuaj yeem muab tau nrog ntau hom couplings, xws li camlock ceev couplings, pin lug, bauer couplings.
1.Qhov hom hose no yog cov khoom siv zoo tshaj plaws los siv rau kev nqus thiab tawm.
2.Nws yog cystal ntshiab, saj zawg zog, ci xim, yooj yim heev kom paub tias dab tsi tshwm sim hauv lub hose.
3.No tsw, ib puag ncig tiv thaiv khoom.
APPLICATIONS
Qhov no hose yog dav siv rau dej nqus & hloov dej, roj, hmoov, granules thiab cov tshuaj lub teeb nyob rau hauv tag nrho lub tshuab nqus tsev kab, kev lag luam twj tso kua mis kab, coolant kab, cua txias tshuab, cua thiab dej muab kab, ntxhua khaub ncaws, thiab lwm yam chaw yuav tsum tau nruj lem thiab ntse khoov.
Khoom Zoo
Transparent steel hlau tube yog PVC hose nrog embedded steel hlau moj khaum.Cov phab ntsa sab hauv thiab sab nrauv yog pob tshab, du thiab npuas tsis muaj npuas, thiab cov dej thauj mus los tau pom meej meej. Tsawg concentration ntawm acid thiab alkali tsis kam, siab elasticity, tsis yooj yim rau Kev laus, kev pab lub neej ntev; Kev ua haujlwm siab, tuaj yeem ua rau lub xeev qub nyob rau hauv lub tshuab nqus tsev siab.
Khoom siv
Pob tshab steel hlau yeeb nkab yog dav siv nyob rau hauv kev lag luam, kev ua liaj ua teb, khoom noj khoom haus thiab tshuaj, kev tsim kho, cua zog thiab lwm yam lag luam, suction thiab kua, roj, tsis tshua muaj concentration tshuaj thiab lwm yam kua thiab khoom hais, hmoov cov ntaub ntawv.
Specification
| Sab hauv | Sab nraud | Qhov hnyav | WP (ntawm 23 degree) | Std Ntev | ||||
| nti | mm | nti | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6 | 0.433 | 11 | 0.12 | 10 | 145 | 100 | 300 |
| 5/16 | 8 | 0.551 | 14 | 0.15 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.20 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.708 | 18 | 0.22 | 8 | 120 | 100 | 300 |
| 5/8 | 15 | 0.866 | 22 | 0.31 | 8 | 120 | 100 | 300 |
| 3/4 | 19 | 0.984 | 25 | 0.36 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.299 | 33 | 0.54 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.614 | 41 | 0.78 | 7 | 100 | 40 | 120 |
| 1-1/2 | 38 | 1.889 | 48 | 1.05 | 6 | 90 | 40 | 120 |
| 1-3/4 | 45 | 2.204 | 56 | 1.30 | 6 | 90 | 40 | 120 |
| 1-7/8 | 48 | 2.322 | 59 | 1.40 | 6 | 90 | 40 | 120 |
| 2 | 50 | 2.441 | 62 | 1.60 | 5 | 75 | 40 | 120 |
| 2-1/4 | 58 | 2.755 | 70 | 2.00 | 5 | 75 | 30 | 90 |
| 2-1/2 | 63 | 3.149 | 80 | 2.80 | 5 | 75 | 30 | 90 |
| 3 | 75 | 3.582 | 91 | 3.50 | 4 | 60 | 30 | 90 |
| 3-1/2 | 90 | 4.251 | 108 | 4.50 | 4 | 60 | 20 | 60 |
| 4 | 100 | 4.645 | 118 | 4.80 | 3 | 45 | 20 | 60 |
| 5 | 127 | 5.629 | 143 | 6.00 | 3 | 45 | 20 | 60 |
| 6 | 152 | 6.692 | 170 | 9.00 | 3 | 45 | 10 | 30 |
| 8 | 200 | 8.818 | 224 | 12.00 | 3 | 45 | 10 | 30 |
Cim npe nrov: 1- pvc caij nplooj ntoos hlav hlau hose yeeb nkab 2- pvc steel hlau hose, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, qis nqi
