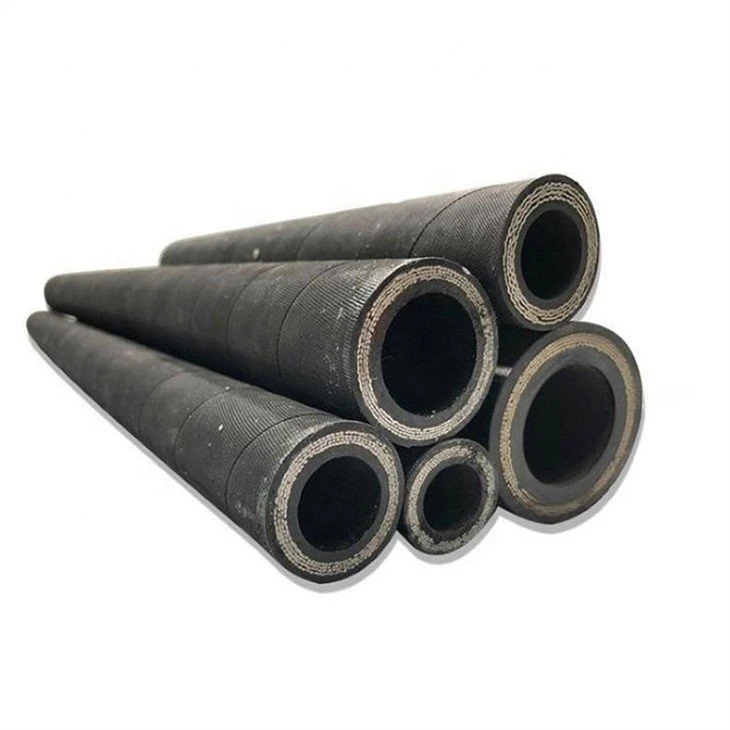

1 1/2 Nti En856 4sp Hydraulic Hose Pipe
Hom Lub Npe: HAIKUO
Sab hauv Tube Khoom: Roj Resistant NBR Roj Hmab
Txheej Txheej: Plaub txheej ntawm Spiraled Steel Hlau
Npog Tube Khoom: Abrasion & Huab cua Resistant NBR Roj Hmab
Qhov kub thiab txias: -40℃- + 120 degree
Product Description:
Yam ntxwv
1. Kev kub siab ua haujlwm
2.Qhov kub tsis kam
3.Soft thiab portable
4.Deformation resistant
5. Zoo nkauj tsos
6.Striated, du lossis ntaub nto
7.Zoo rwb thaiv tsev thiab abrasion kuj
8.Steel hlau braided los yog spiraled txheej reinforcement
9. Durable nrog cov khoom zoo
10.Free qauv
11. Kev xa khoom sai
Daim ntawv ceeb toom txog hydraulic roj hmab hose (PSF)
1.Lub hose yuav tsum tsis txhob siv kom siab tshaj qhov tsim los.
2.Qhov kub ntawm qhov nruab nrab raug xa tawm los ntawm lub hose yuav tsum nyob rau hauv cov ntaub ntawv ib txwm, los yog txo cov kev siv lub neej ntawm lub hose.
3.Lub hose yuav tsum tsis txhob siv tsawg tshaj li qhov tsawg kawg nkaus khoov vojvoog ntawm lub hose, thiaj li tsis txhob khoov ze ntawm cov yeeb nkab txuas.
4.Lub hose yuav tsum tau ua tib zoo saib xyuas, thiab yuav tsum tsis txhob rub ntawm lub ntse thiab ntxhib nto, yuav tsum tsis txhob khoov thiab squashed.
5.Pls khaws lub hose kom huv si thiab tiv thaiv cov khoom siv sab nraud rau hauv lub hose, yog tias muaj kev cuam tshuam cov dej sib kis thiab ua rau cov khoom puas.
6.Yog lub hose qhov hnyav ua rau deformation ntau dhau, lub hose yuav tsum tau txais kev txhawb nqa.
Khoom parameters
|
Specification |
OD
|
Ua hauj lwm siab |
Bar | |
|
nti / mm |
Mpa / PSI | |||
|
1/4" |
6 |
13.7 |
32 / 4640 |
320 |
|
5/16" |
8 |
15.7 |
28 / 4060 |
280 |
|
3/8" |
10 |
17.7 |
26 / 3770 |
260 |
|
1/2" |
13 |
20.7 |
23 / 3335 |
230 |
|
5/8" |
16 |
24 |
18 / 2610 |
280 |
|
3/4" |
19 |
27.5 |
16 / 2320 |
160 |
|
1" |
25 |
35 |
12 / 1740 |
120 |
|
1-1/4" |
32 |
42 |
9 / 1305 |
90 |
|
1-1/2" |
38 |
48.5 |
7 / 1015 |
70 |
|
2" |
51 |
61.5 |
4 / 580 |
40 |
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas.
Q: Yam khoom ntim twg koj tuaj yeem muab tau?
A: Tailor- ua txoj kev ntim khoom raws li tus neeg siv khoom xav tau, txwv tsis pub, peb yuav ua rau hiav txwv - tsim nyog ntim.
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Yog, koj ib txwm txais tos tuaj xyuas peb lub Hoobkas.
Q: Koj puas tuaj yeem xa peb cov qauv los kuaj qhov zoo ua ntej xaj?
A: Yog, peb tuaj yeem muab cov qauv dawb tab sis cov nqi thauj khoom thiab lwm cov nqi them los ntawm cov neeg siv khoom.
Q: Koj puas tuaj yeem pab peb ua qhov kev cai tshem tawm?
A: Yog, peb tuaj yeem ua tau. Peb tuaj yeem pab koj nrhiav lub tuam txhab kev cai tshem tawm kev tshaj lij los ua nws.
Q: Thaum twg kuv tuaj yeem tau txais cov lus hais?
A: Peb feem ntau hais hauv 24 teev tom qab peb tau txais koj qhov kev nug. Yog tias koj ceev heev kom tau txais tus nqi, thov hu rau peb ncaj qha, yog li ntawd peb yuav suav nrog koj qhov kev nug tseem ceeb.
Cim npe nrov: 1 1/2 nti en856 4sp hydraulic hose yeeb nkab, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, luv nqi
