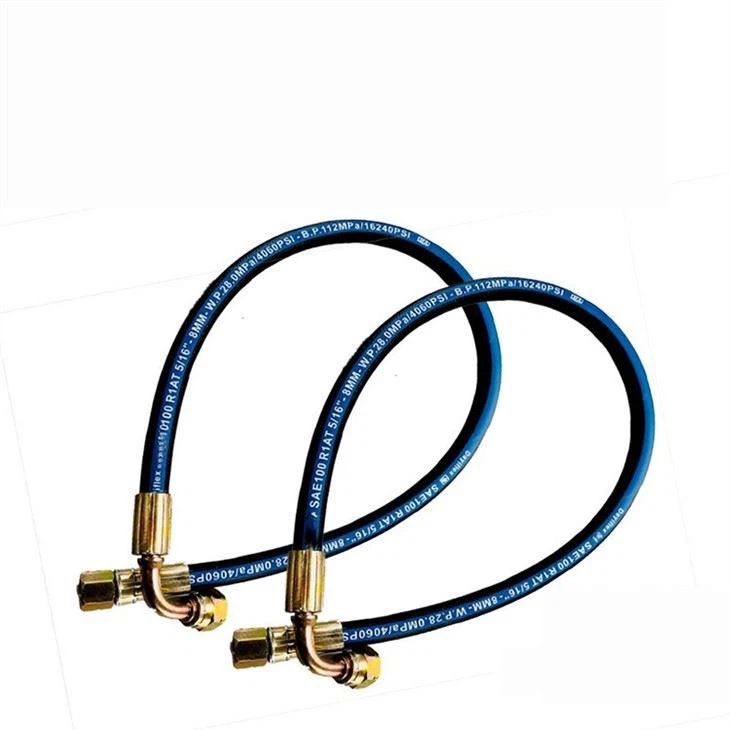

Tsheb laij teb Hydraulic Hoses Thiab Fittings

Lub npe: tsheb laij teb hydraulic hoses thiab fittingsModel Number: R1/R2 1SN/2SN ETC.Processing Service: Hose Cutting and Crimp FittingProduct name: SAE 100R1 fuel high pressure braided air flexible pipe rubber hydraulic hoseMaterial: NBR+Steel wireColor: Black/Red/Blue/Yre/Y

Xa kev nug

Khoom Taw qhia

Lub tsheb laij teb hydraulic hoses thiab fittings Application: Siv los thauj compressed cua thiab inert gas rau mining, civil siv, Hoobkas thiab lwm yam.

Tube: Roj resistant hluavtaws roj hmab

Kev txhawb zog:

1>ib los yog ob lub siab tensile steel hlau braid hose

2>plaub los yog rau siab tensile steel hlau kauv hose

3>ib los yog ob lub tensile steel fiber braid (1T / B) (2T / B)

Npog:

Abrasion thiab huab cua resistant hluavtaws roj hmab

Kub:

1>-40 Celsius℃--- +100Celsius degree

2>-40 Celsius℃--- +125Celsius degree

Khoom siv

Cov hose no tuaj yeem siv rau hauv kev tsim kho, tshuab cuab yeej thiab kev ua liaj ua teb.

Piv txwv li Mine hydraulic kua, kev tshawb nrhiav roj, crane, forging metallurgy, cov khoom siv mining, nkoj, kev txhaj tshuaj molding machinery, kev ua liaj ua teb machinery thiab ntau yam machinery tools.etc.

SIZE		ID	OD	W.P.	P.P.	B.P.	W.T.
mm	Ntiv	mm	mm	Mpa			Kg / m
5	3/16	4.6-5.4	11.1-13.0	25	50	100	0.20
6.3	1/4	6.2-7.0	12.7-14.0	22.5	45	90	0.25
8	5/16	7.7-8.5	14.3-16.0	21.5	43	86	0.31
10	3/8	9.3-10.1	16.7-18.0	18.0	36	72	0.36
12.5	1/2	12.3-13.5	19.8-21.0	16.0	32	64	0.45
16	5/8	15.5-16.7	22.9-25.0	13.0	26	52	0.52
19	3/4	18.6-19.8	26.9-29.0	10.5	21	42	0.65
25	1	25.0-26.4	34.1-34.6	8.8	17.6	35.2	0.91
31.5	11/4	31.4-33.0	42.2-45.0	6.3	12.6	25.2	1.30
38	11/2	37.7-39.3	49.1-52.0	5.0	10	20	1.70
51	2	50.4-52.0	62.5-66.0	4.0	8	16	2.00

Xaiv qhov haum hydraulic hose

Kev xaiv cov hydraulic hose kom zoo rau daim ntawv thov yog qhov tseem ceeb rau kev ua haujlwm kom zoo thiab kev nyab xeeb ntawm kev siv hose thiab lwm yam khoom siv.

Ua kom txaus rau kev xaiv cov hose rau koj daim ntawv thov tuaj yeem ua rau lub hose to, tawg lossis lwm yam tsis ua haujlwm, uas tuaj yeem ua rau lub cev raug mob hnyav lossis khoom puas tsuaj los ntawm cov kua dej los yog ya davhlau.

Yog li thaum xaiv hydraulic hose, peb yuav tsum xav txog cov hauv qab no

1. Hose Size 2. Hose Length 3. Hose Fittings 4. Fluid Conveyed 5. Khoov 6. Temperature 7. Hose pressure 8. Static Head Pressure 9.Installation Design

Peb kuj muaj lwm qhov loj loj hydraulic hose. Yog tias koj txaus siab, koj tuaj yeem tiv tauj peb.

Peb tuaj yeem tsim khoom raws li koj qhov kev thov.

Yuav ua li cas kom tau txais cov lus hais rau hydraulic hose:

Yog tias koj txaus siab rau peb cov hydraulic hose, thov ua siab zoo qhia kuv cov ntaub ntawv raws li hauv qab no, peb yuav xa cov ntsiab lus rau koj.

Hose txheem

Loj

Txheej ntawm hlau

Ntau

Lub hose siv rau

SAE / DIN los yog lwm yam.

Sab hauv txoj kab uas hla

2SP / 4SP lossis lwm yam.

meters / yob

hydraulic hose / dej hose thiab lwm yam.

certificate
