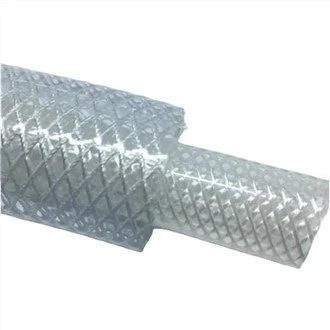

Pvc Transparent Reinforced Hose
Ntev: 20-170m / yob tuaj yeem hloov kho, 20-170m / yob tuaj yeem hloov kho
Thickness: customized
Khoom siv: PVC
Khoom taw qhia
Lub npe: pvc pob tshab reinforced hose
Yam ntxwv: flexibale ruaj khov
Ntev: 20-170m / yob tuaj yeem hloov kho, 20-170m / yob tuaj yeem hloov kho
Thickness: customized
Khoom siv: PVC
Xim: Dawb, xiav, liab, daj lossis raws li cov neeg siv khoom xav tau
Daim Ntawv Thov: Tshem tawm hauv Hoobkas, ua liaj ua teb, tsev, thiab lwm yam
Nta
Compression kuj, anti-aging, anti-corrosion, zoo elasticity, plaub lub caij mos, acid thiab alkali tsis kam, lub raj lub cev yog tag nrho thiab du.
Daim ntawv thov
Cov yeeb nkab pob tshab tuaj yeem siv rau lub tshuab nqus tsev twj tso kua mis ua liaj ua teb, cov khoom siv dej thiab cov kav dej, cov khoom siv petrochemical, cov khoom siv yas thiab cov khoom noj huv huv, thiab lwm yam.
Yam ntxwv
1.Slexible, pob tshab, ruaj khov, tsis muaj tshuaj lom, tsis muaj ntxhiab tsw.
2.Anti-erosion thiab anti-abrasion.
3.Ntxiv cov yeeb yuj cim kab ntawm qhov chaw ntawm lub hose.
Kev tsim kho
Tube thiab npog: PVC
Reinforcement: siab tensile polyester fiber ntau
Khoom parameters
Askiv | Kev ntsuas ntsuas | Ntev | W.P. | B.P. | Qhov hnyav | Ntim | |
Kev ntsuas | I.D. | O.D | |||||
nti | mm | mm | m | Mpa | Mpa | kg / yob | m³ |
5/64 | 2 | 4 | 100 | 1.2 | |||
1/8 | 3 | 5 | 100 | 1.7 | |||
5/32 | 4 | 6 | 100 | 2.2 | |||
1/5 | 5 | 9 | 100 | 5.6 | 0.011 | ||
1/4 | 6 | 8 | 100 | 0.25 | 1.2 | 3 | 0.016 |
5/16 | 8 | 10 | 100 | 0.25 | 1 | 3.8 | 0.018 |
3/8 | 10 | 12 | 100 | 0.25 | 1 | 4.7 | 0.019 |
1/2 | 12 | 15 | 50 | 0.2 | 0.9 | 4.3 | 0.021 |
5/8 | 15 | 20 | 50 | 0.2 | 0.9 | 9 | 0.023 |
3/4 | 19 | 22 | 50 | 0.2 | 0.9 | 6.55 | 0.047 |
1 | 25 | 30 | 50 | 0.2 | 0.9 | 14.5 | 0.057 |
1-1/4 | 32 | 38 | 50 | 0.2 | 0.9 | 22.4 | 0.068 |
1-1/2 | 38 | 44 | 40 | 0.2 | 0.8 | 20.88 | 0.122 |
2 | 50 | 58 | 40 | 0.2 | 0.8 | 36.64 | 0.226 |
FAQ
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua qauv ua ntej ua ntej ua ntej ntau lawm; Kev soj ntsuam zaum kawg ua ntej xa khoom.
Q: Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim peb cov khoom hauv nruab nrab lub thawv dawb thiab cov thawv xim av. Yog tias koj tau sau npe patent raws cai, peb tuaj yeem ntim cov khoom hauv koj lub thawv muaj npe tom qab tau txais koj cov ntawv tso cai.
Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100 feem pua kev xeem ua ntej xa khoom.
Q: Koj puas tuaj yeem suav tus nqi thauj khoom rau kuv?
A: Tau kawg, peb txaus siab ua qhov ntawd! Ua ntej freight, thov qhia rau peb paub seb qhov chaw nres nkoj twg lossis lub tshav dav hlau nyob ze koj qhov chaw.
Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q: Kuv puas tuaj yeem tso cov qauv txiav txim ua ntej?
A: Yog, peb yuav hais koj cov nqi sib txawv rau me me, nruab nrab thiab loj qty. Koj tuaj yeem xaj nrog tus nqi sib txawv rau qty sib txawv.
Cim npe nrov: pvc pob tshab reinforced hose, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, qis nqi
