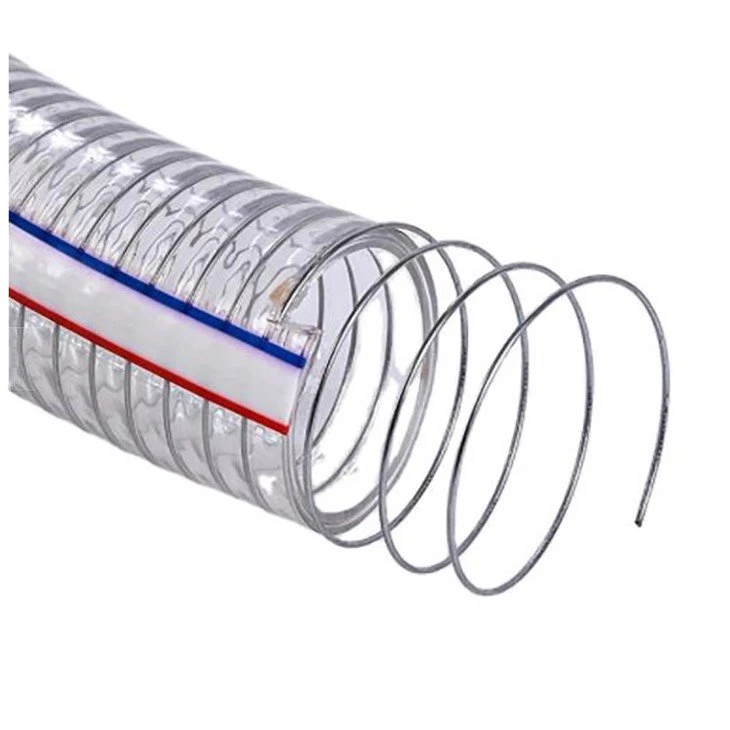

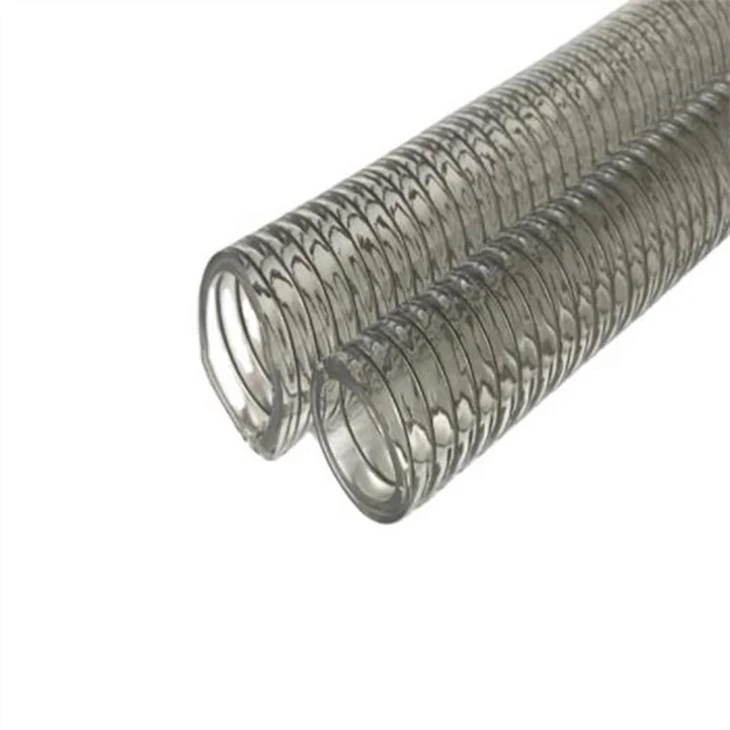

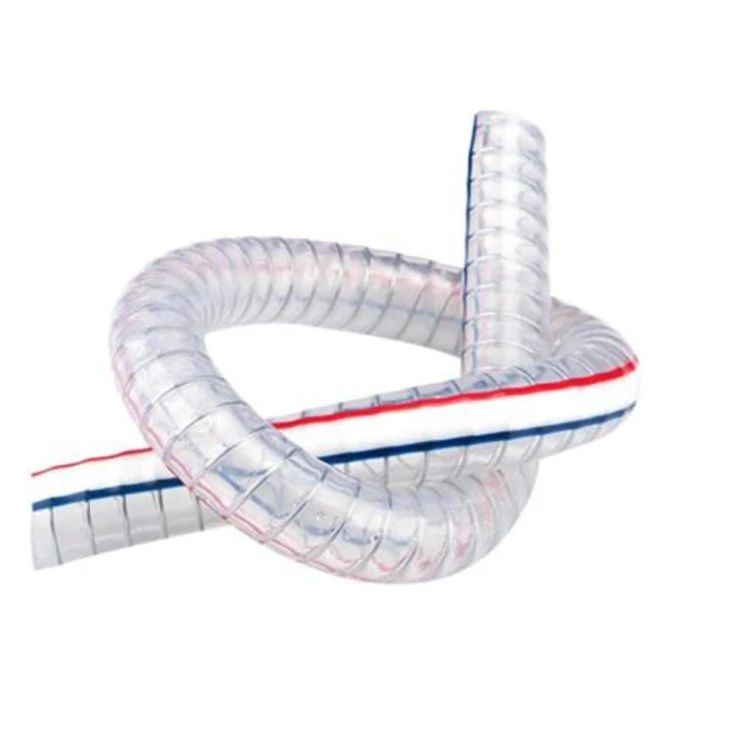

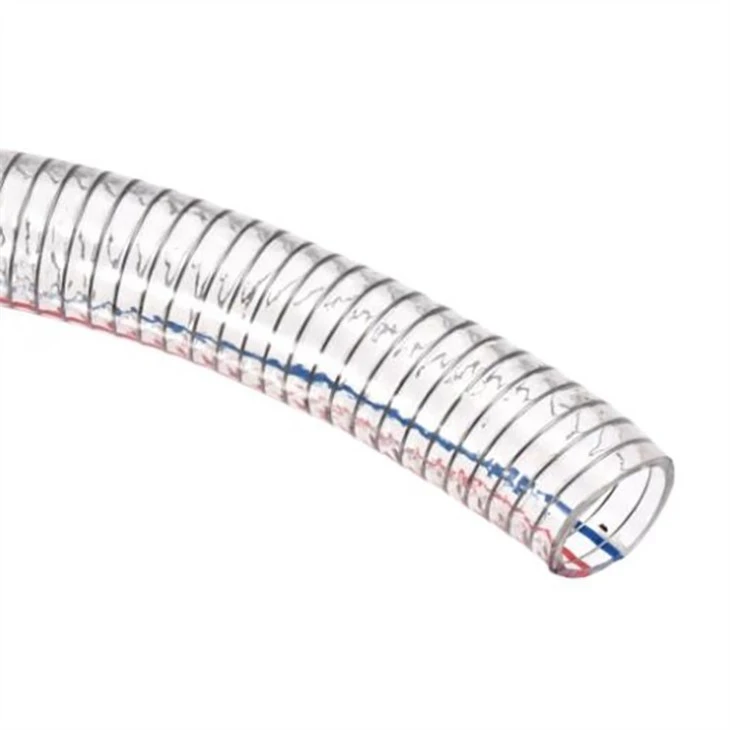

Pvc Hlau Braided Flexible Hose Yeeb Nkab
Thickness: 2 hli los yog raws li koj qhov kev thov
Ntev: 20/30/50/100/200M
Specification: 1/4 "mus rau 10"
Xim: Xiav, liab, daj lossis raws li tus neeg thov
Yam ntxwv: Stretching resistant, loj dej paug
Matting Service: Bauer coupling, yas connector
Daim ntawv thov: Sludge tawm hauv kev ua liaj ua teb, kev tsim kho, kev lag luam, tsuas
Ua Haujlwm Siab: -1--10 bar
Product Description:
Kev tsim kho:
Tube thiab npog: pob tshab PVC
Reinforcement: steel hlau kauv
Daim ntawv thov:
PVC steel hlau caij nplooj ntoos hlav hose yog dav siv rau kev nqus thiab tawm ntawm cov dej, roj thiab hmoov cov khoom hauv kev lag luam, kev ua liaj ua teb, engineering, khoom noj khoom haus thiab dej huv, hose.
siv rau cov khoom noj khoom haus yog ua los ntawm cov khoom noj tshwj xeeb pvc.Nws yog nontoxic, lub teeb, tsis muaj ntxhiab thiab pob tshab.
Cov zaub mov qib PVC steel hlau lub caij nplooj ntoos hlav hose tuaj yeem siv rau kev xa cov mis nyuj, dej haus, distilled cawv, npias, jam thiab lwm yam khoom noj.
Peb tseem tuaj yeem ntxig cov cooper xaim rau hauv hose.Qhov hose no tuaj yeem zam qhov thaiv ntawm qhov ntws hauv lub hose vim qhov zoo li qub, thiab tiv thaiv cov neeg siv los ntawm kev poob hluav taws xob lossis hluav taws xob tam sim no impingement.
Yam ntxwv:
1. Lub teeb yuag, hloov tau nrog me me dabtsi yog khoov vojvoog.
2. Durable tiv thaiv kev cuam tshuam sab nraud, tshuaj lom neeg thiab kev nyab xeeb
3.Transparent, yooj yim los xyuas cov ntsiab lus.
4.Anti-UV, tiv thaiv kev laus, ua haujlwm ntev
Khoom parameters
Hom Nruab Nrab Inch Loj | ID (mm) | OD (mm) | Ntev (m) | Ua haujlwm siab (bar) | Kev kub siab (bar) | Qhov hnyav (kg / yob) |
5/32" | 4 | 8 | 100 | 9 | 27 | 4.5 |
3/16" | 5 | 9 | 100 | 9 | 27 | 5.3 |
1/4" | 6 | 10 | 100 | 8 | 24 | 6.1 |
2/16" | 8 | 12 | 100 | 8 | 24 | 7.6 |
5/16" | 8 | 13 | 100 | 10 | 30 | 10.2 |
3/8" | 9 | 14 | 100 | 8 | 24 | 11.1 |
3/8" | 10 | 14 | 100 | 8 | 24 | 9.2 |
3/8" | 10 | 15 | 100 | 10 | 30 | 12.1 |
1/2" | 12 | 16 | 100 | 7 | 21 | 10.7 |
1/2" | 13 | 17 | 100 | 7 | 21 | 11.5 |
1/2" | 13 | 18 | 100 | 9 | 27 | 15 |
5/8" | 15 | 19 | 50 | 6 | 18 | 6.5 |
5/8" | 16 | 20 | 50 | 6 | 18 | 6.9 |
5/8" | 16 | 21 | 50 | 8 | 24 | 9 |
3/4" | 18 | 22 | 50 | 5 | 15 | 8.1 |
3/4" | 19 | 23 | 50 | 5 | 15 | 8.5 |
3/4" | 19 | 24 | 50 | 7 | 20 | 10.4 |
1" | 24 | 29 | 50 | 5 | 15 | 13.5 |
1" | 25 | 30 | 50 | 5 | 15 | 14 |
1" | 25 | 31 | 50 | 7 | 21 | 16.5 |
1-1/4" | 32 | 38 | 50 | 4 | 12 | 21.4 |
1-1/4" | 32 | 39 | 50 | 5 | 15 | 24.5 |
1-1/2" | 38 | 45 | 40 | 4 | 12 | 23.7 |
1-1/2" | 38 | 46 | 40 | 5 | 15 | 26.6 |
2" | 50 | 59 | 30 | 4 | 12 | 40 |
2" | 50 | 60 | 30 | 5 | 15 | 43.9 |
FAQ
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua qauv ua ntej ua ntej ua ntej ntau lawm; Kev soj ntsuam zaum kawg ua ntej xa khoom.
Q: Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim peb cov khoom hauv nruab nrab lub thawv dawb thiab cov thawv xim av. Yog tias koj tau sau npe patent raws cai, peb tuaj yeem ntim cov khoom hauv koj lub thawv muaj npe tom qab tau txais koj cov ntawv tso cai.
Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100 feem pua kev xeem ua ntej xa khoom
Q: Koj puas tuaj yeem suav tus nqi thauj khoom rau kuv?
A: Tau kawg, peb txaus siab ua qhov ntawd! Ua ntej freight, thov qhia rau peb paub seb qhov chaw nres nkoj twg lossis lub tshav dav hlau nyob ze koj qhov chaw.
Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q: Kuv puas tuaj yeem tso cov qauv txiav txim ua ntej?
A: Yog, peb yuav hais koj cov nqi sib txawv rau me me, nruab nrab thiab loj qty. Koj tuaj yeem xaj nrog tus nqi sib txawv rau qty sib txawv.
