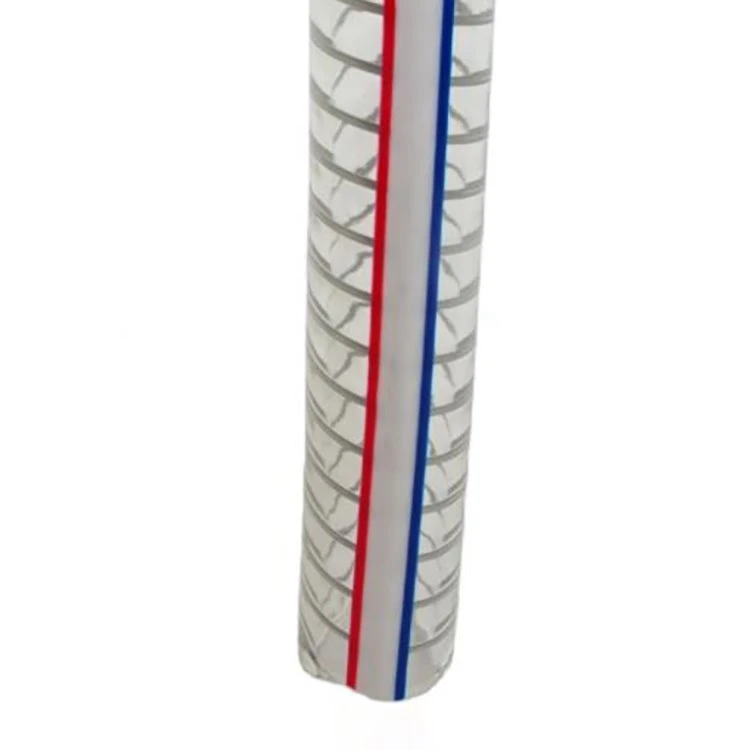

Hlau Hlau Reinforced Pvc Flexible Yeeb Nkab
Sab hauv txoj kab uas hla: 8-200 mm(5/16-8inch)
Phab ntsa thickness: 2.5-12mmcolor: pob tshab
WT: -5 degree -65 degree
WP : -0 1-1.1Mpa(23 degree)
BP: 1-3.3Mpa (23 degree)
Product Description:
CHARACTERISTIS
1.Qhov no hose, nrog stinlaid nyob rau hauv lub hose, yog lub teeb, pob tshab, nrog me me dabtsi yog khoov vojvoog. Nws muaj qhov hloov tau zoo rau cov huab cua hnyav thiab lub siab qis.
2.Nrog cov yeeb yuj cim kab ntawm qhov chaw ntawm lub hose, nws tuaj yeem ua kom zoo nkauj dua.
Cov ntaub ntawv dav dav
∎ Peb cov PVC hose muaj xws li ib tug ntau yam ntawm high-zoo hose nrog txawv diameters rau kev ua thiab conveyance raws li zoo raws li nqus ntawm ntau yam khoom.
∎ Raws li cov hoses tsim nyog cov khoom siv, npog, thiab kev txhawb nqa lawv txhua tus yoog raws, muaj zog, ruaj khov, thiab muaj peev xwm ntawm
ua haujlwm nrog siab, thiab tsis tshua muaj siab & cua sov.
∎ Lawv tiv taus kev puas tsuaj nrog rau cov tshuaj lom neeg, thiab kink.
∎ Ntxiv mus, tag nrho cov hoses yog resistant rau ib puag ncig tej yam kev mob, yog li ntawd lawv muaj peev xwm ua hauj lwm los ntawm huab cua puag.
Khoom parameters
| PART NO. | I.D. | O.D. | W.P. | B.P. | LENGTH/ROLL | NYIAJ / M | ||
hauv | mm | mm | Mpa | Mpa ntawm 23degree | Mpa ua 60degree | m | kg | |
HK{0}} | 1/4" | 6 | 12 | -0.1~1.1 | 3.3 | 1.6 | 100 | 0.127 |
HK{0}} | 5/16" | 8 | 14 | 3.3 | 1.6 | 100 | 0.155 | |
HK{0}} | 3/8" | 10 | 16 | 3.3 | 1.6 | 100 | 0.184 | |
HK{0}} | 1/2" | 12 | 18 | -0.1~1.0 | 3 | 1.5 | 100 | 0.212 |
HK{0}} | 5/8" | 15 | 22 | 3 | 1.3 | 100 | 0.305 | |
HK{0}} | 3/4" | 19 | 26 | 3 | 1.2 | 50 | 0.371 | |
HK{0}} | 1" | 25 | 33 | 2.5 | 1 | 50 | 0.546 | |
HK{0}} | 1 1/4" | 32 | 41 | -0.1~0.7 | 2 | 1 | 40 | 0.774 |
HK{0}} | 1 1/2" | 38 | 48 | -0.1~0.6 | 1.8 | 0.9 | 40 | 1.013 |
HK{0}} | 1 3/4" | 45 | 56 | 1.7 | 0.8 | 40 | 1.308 | |
HK{0}} | 1 7/8" | 48 | 59 | -0.1~0.5 | 1.6 | 0.7 | 40 | 1.386 |
HK{0}} | 2" | 50 | 62 | 1.6 | 0.7 | 40 | 1.583 | |
HK{0}} | 2 5/16" | 58 | 70 | 1.5 | 0.7 | 40 | 1.809 | |
HK{0}} | 2 1/2" | 63 | 80 | 1.4 | 0.5 | 30 | 2.863 | |
HK{0}} | 3" | 75 | 91 | 1.3 | 0.5 | 30 | 3.127 | |
HK{0}} | 3 1/2" | 90 | 108 | -0.1~0.4 | 1.2 | 0.5 | 20 | 4.197 |
HK{0}} | 4" | 102 | 118 | -0.1~0.3 | 1.0 | 0.5 | 20 | 4.145 |
HK{0}} | 4 3/8" | 110 | 123 | 1.0 | 0.5 | 20 | 3.567 | |
HK{0}} | 4 5/8" | 117 | 133 | 1.0 | 0.5 | 20 | 4.710 | |
HK{0}} | 5" | 127 | 143 | 1.0 | 0.5 | 20 | 5.087 | |
HK{0}} | 5 1/2" | 140 | 156 | 1.0 | 0.5 | 10 | 5.577 | |
HK{0}} | 6" | 152 | 170 | 1.0 | 0.5 | 10 | 6.825 | |
HK{0}} | 6 5/16" | 160 | 176 | 1.0 | 0.5 | 10 | 6.330 | |
HK{0}} | 7" | 180 | 196 | 1.0 | 0.5 | 10 | 7.084 | |
HK{0}} | 8" | 200 | 224 | 1.0 | 0.5 | 10 | 11.982 | |
APPLICATIONS
Lub hose yog dav siv rau kev kos duab thiab xa dej, roj thiab hmoov hauv cov chaw tsim khoom, kev ua liaj ua teb, engineering, khoom noj khoom haus thiab kab huv huv. Lub hose siv rau cov khoom noj khoom haus yog ua los ntawm cov khoom siv tshwj xeeb. Nws yog non-toxic, lub teeb, tsis muaj ntxhiab thiab pob tshab. Cov hose no tuaj yeem siv rau kev xa cov mis nyuj, dej haus, distilled cawv, npias, jam, thiab lwm yam khoom noj.
FAQ
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Ib txwm ua qauv ua ntej ua ntej ua ntej ntau lawm; Kev soj ntsuam zaum kawg ua ntej xa khoom.
Q: Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim peb cov khoom hauv nruab nrab lub thawv dawb thiab cov thawv xim av. Yog tias koj tau sau npe patent raws cai, peb tuaj yeem ntim cov khoom hauv koj lub thawv muaj npe tom qab tau txais koj cov ntawv tso cai.
Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100 feem pua kev xeem ua ntej xa khoom
Q: Koj puas tuaj yeem suav tus nqi thauj khoom rau kuv?
A: Tau kawg, peb txaus siab ua qhov ntawd! Ua ntej freight, thov qhia rau peb paub seb qhov chaw nres nkoj twg lossis lub tshav dav hlau nyob ze koj qhov chaw.
Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog lawm, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q: Kuv puas tuaj yeem tso cov qauv txiav txim ua ntej?
A: Yog, peb yuav hais koj cov nqi sib txawv rau me me, nruab nrab thiab loj qty. Koj tuaj yeem xaj nrog tus nqi sib txawv rau qty sib txawv.
